Manufacturer & Trading Company

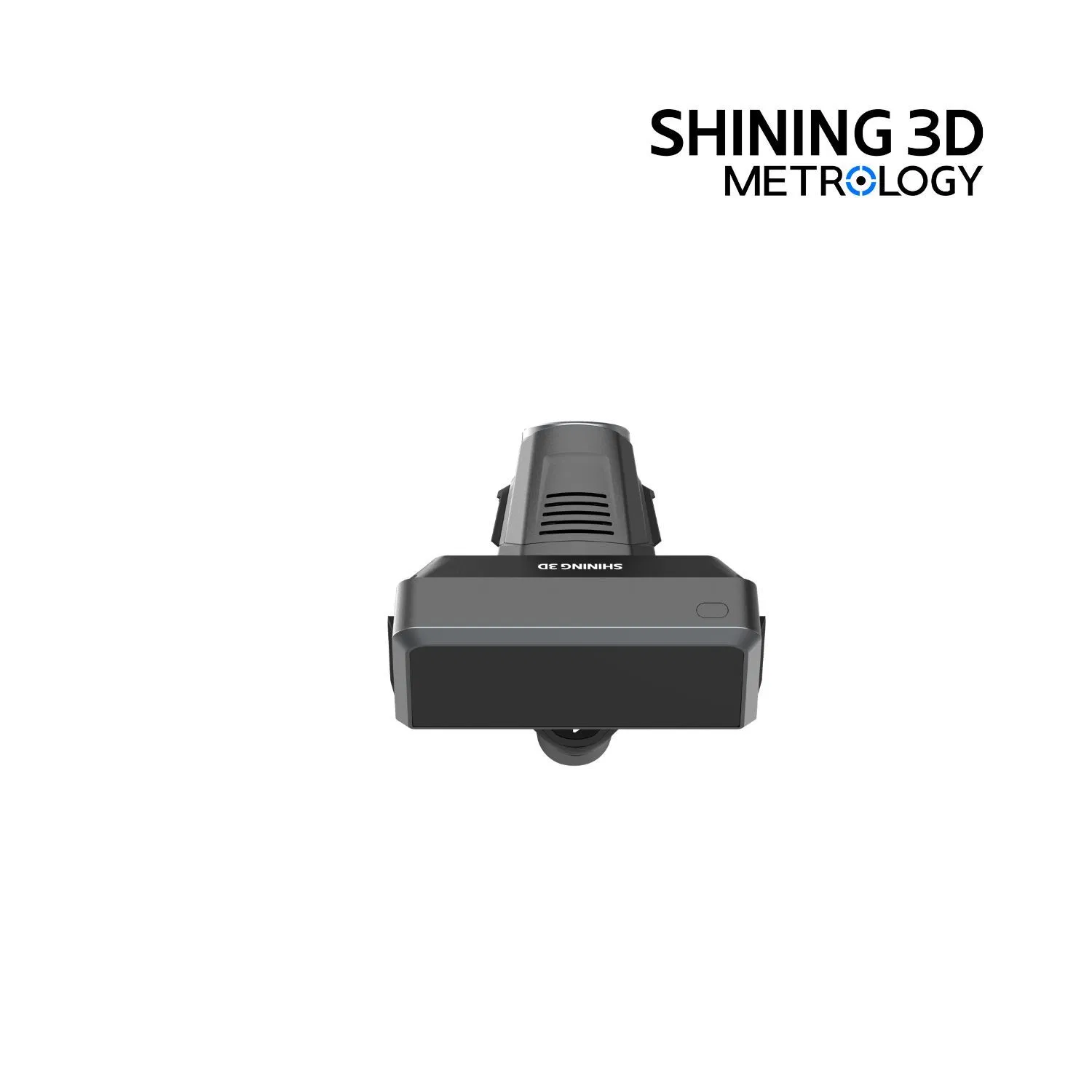

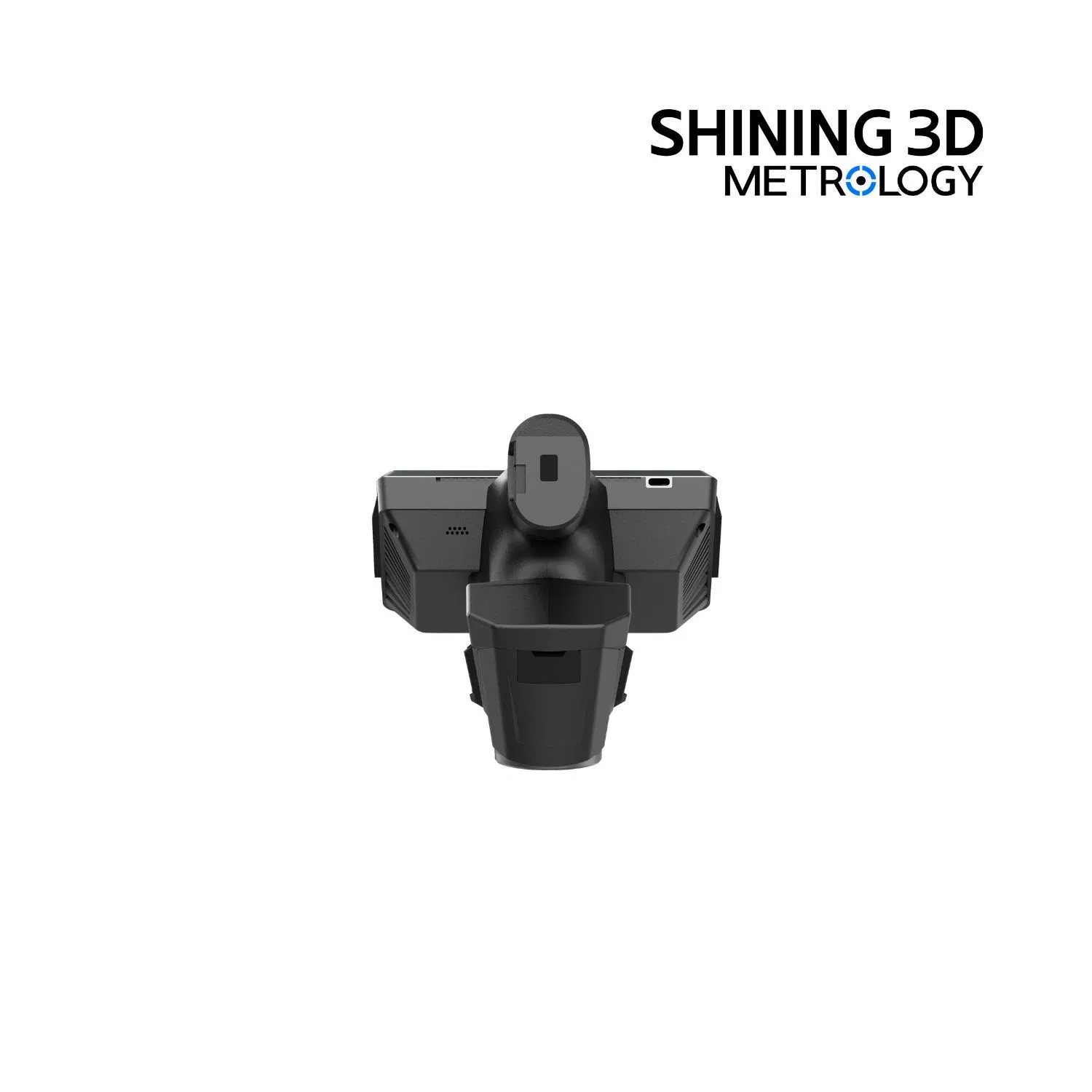

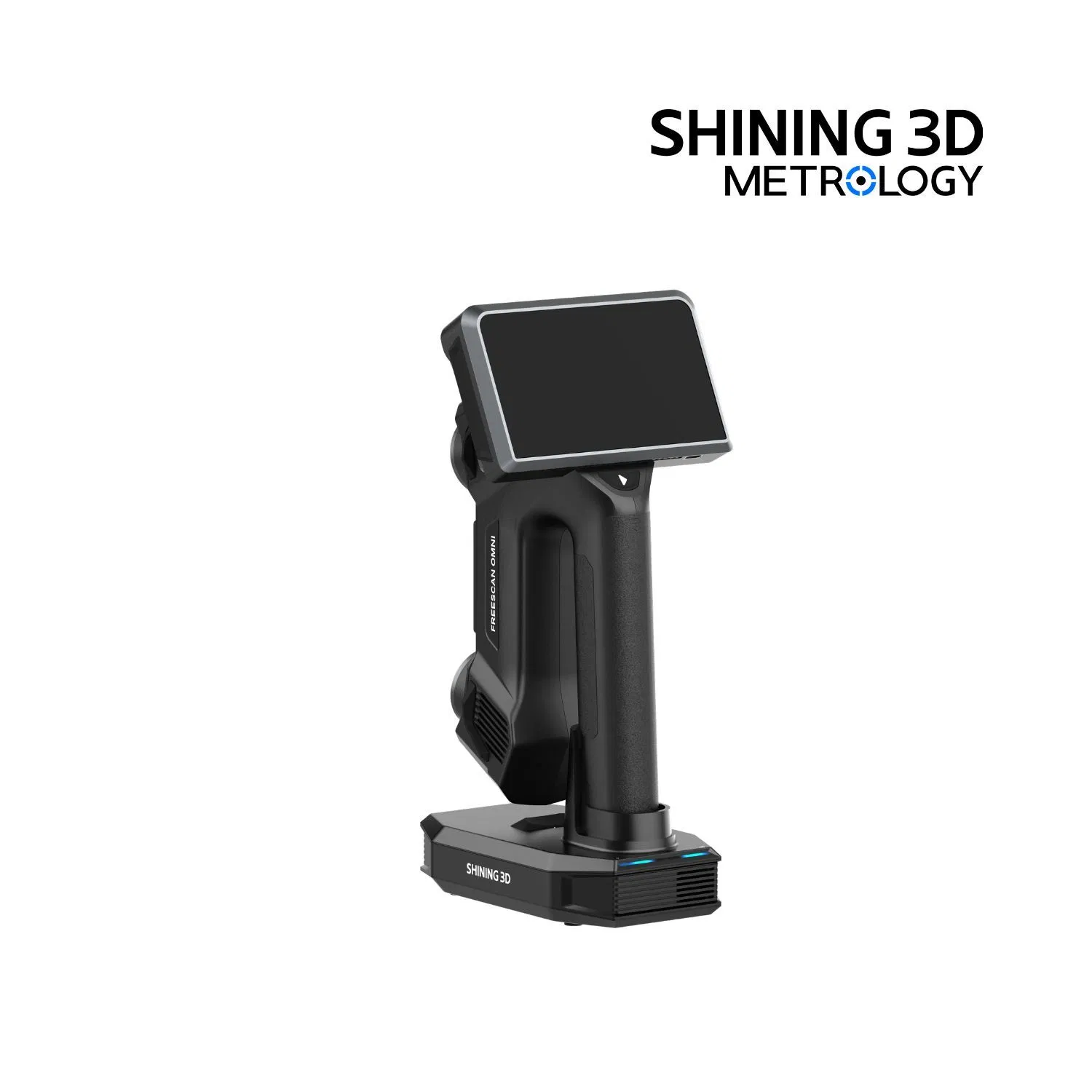

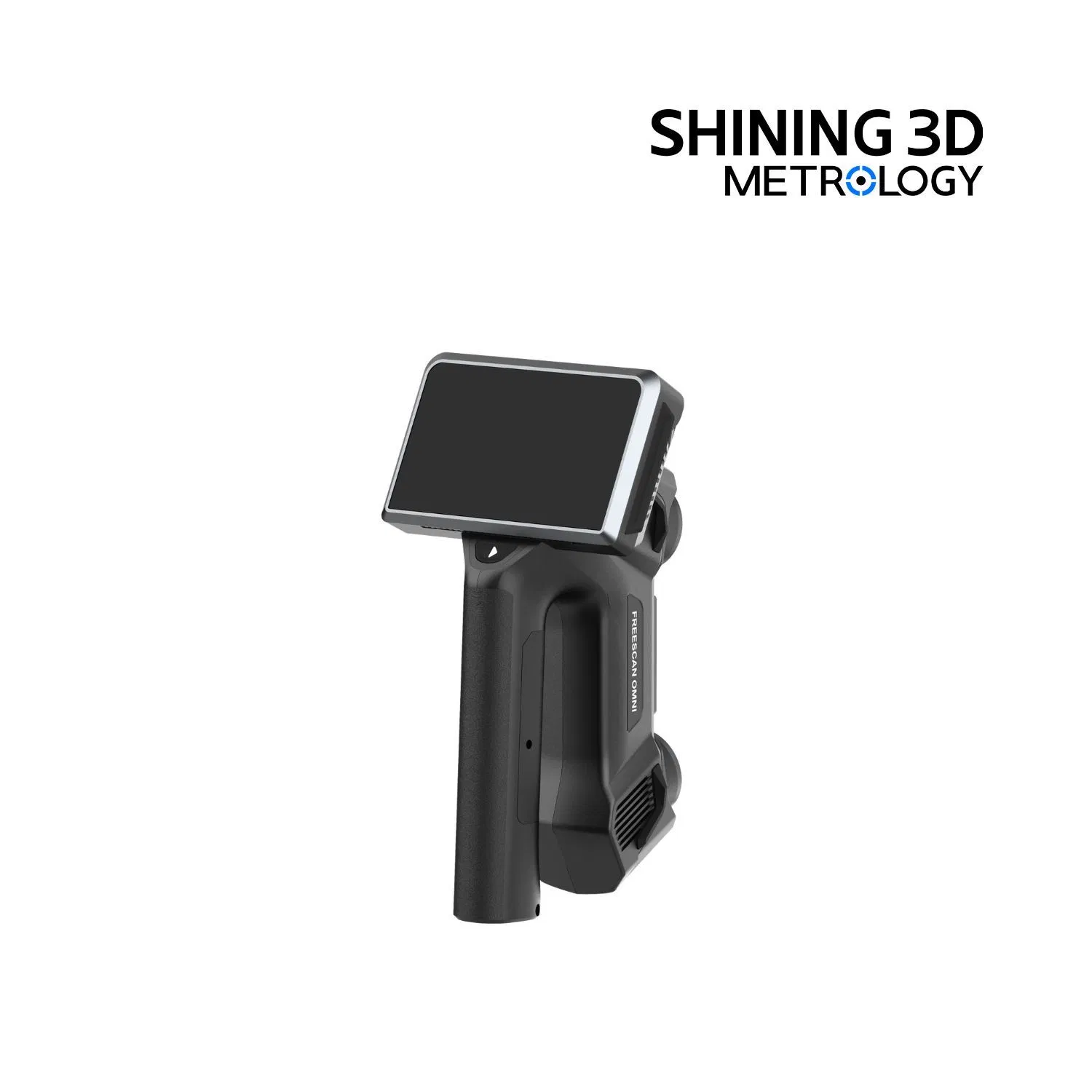

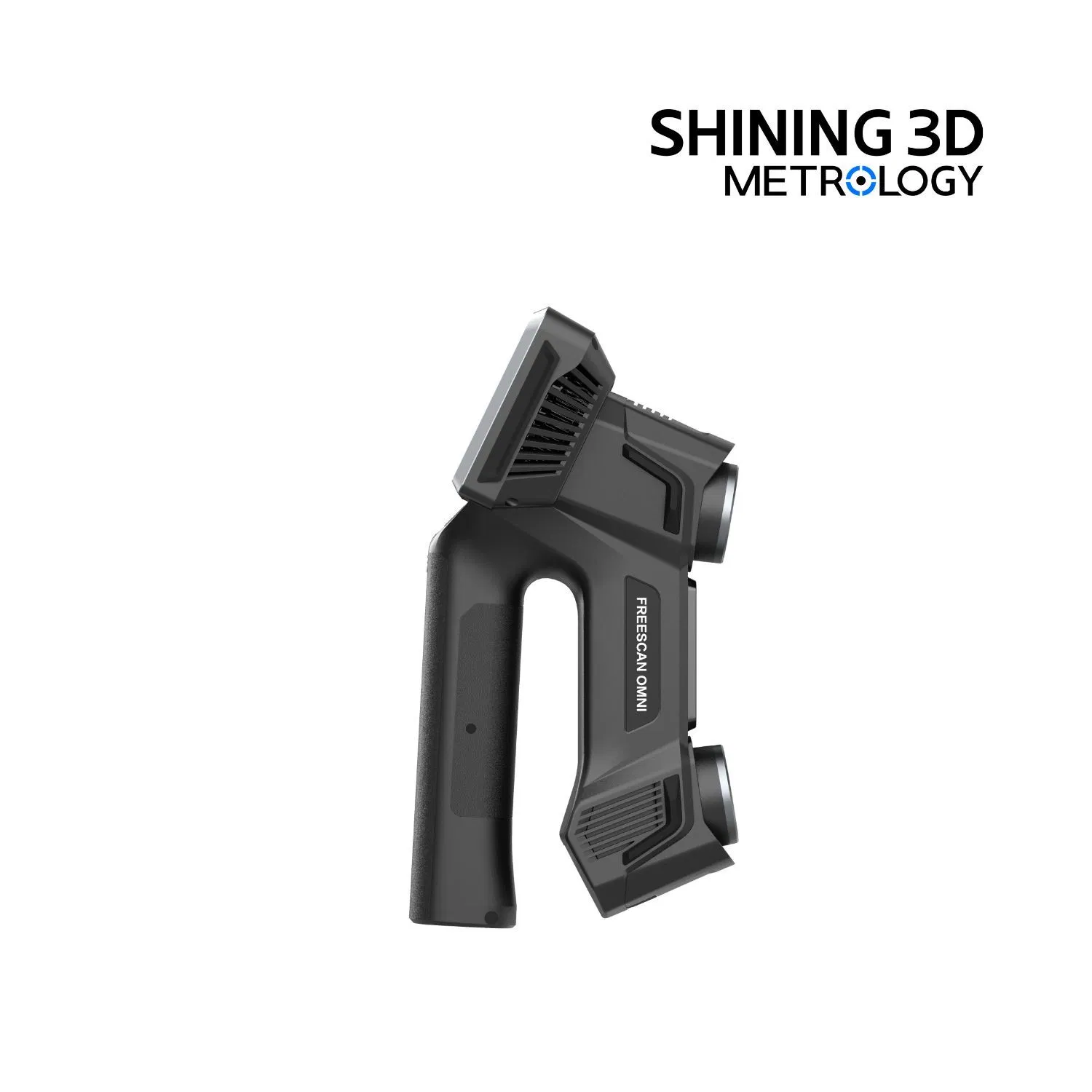

Fully Wireless Detachable Battery Metrology 3D Scanner for Uninterrupted Field Operations
USD 20000٫00 – 40000٫00
/ Piece
السعر يتفاوت حسب الكمية والمواصفات
| الكمية الدنيا | 1 Piece |
| الفئة | Instruments & Meters |
22
سنوات
98%
نسبة الاستجابة
24h
وقت الرد
المزيد من هذا المورد
وصف المنتج
لا يوجد وصف تفصيلي. يرجى إرسال استفسار للحصول على مزيد من المعلومات.
المواصفات التقنية
| Model NO. | FreeScan Omni / FreeScan Omni Lite |
| After-sales Service | Online Support |
| Warranty | 1 Year |
| Style | Portable |
| Interface Type | Wireless |
| Network Scanning | Support Network |
| Certification | ISO, CE, FCC, RoHS, Weee, Kc, FDA, Ukca, IP50, Tisax |
| Accuracy | 0.02 mm |
| Volumetric Accuracy | 0.02 + 0.03 mm/M |
| Volumetric Extension Accuracy with Vpg | 0.02 + 0.015 mm/M |
| Scan Speed | 7,619,000 Points/S |
| Resolution | 0.01 ~ 10 mm |
| Max. Fov | Laser: 580 × 650 mm; IR: 1205 × 1104 mm |
| Depth of Field | 830 mm (170 ~ 1000 mm) |
| Connection | Wireless & Wired Mode |
| Net Weight | ≤ 1.1 Kg |
| Scanning Modes | High-Speed Detailed Deep Pockets IR Rapid Scan |
| Vpg | Supported (No Coded Markers Required) |
| Lead Time | 10-15 Days |
| Accuracy Certification | Vdi/VDE 2634 Part 3 & ISO 10360 Certified |
| Transport Package | Carton Box |
| Specification | ≤ 1.1 kg |
| Trademark | SHINING 3D |
| Origin | Hangzhou, China |
| HS Code | 9031499000 |
