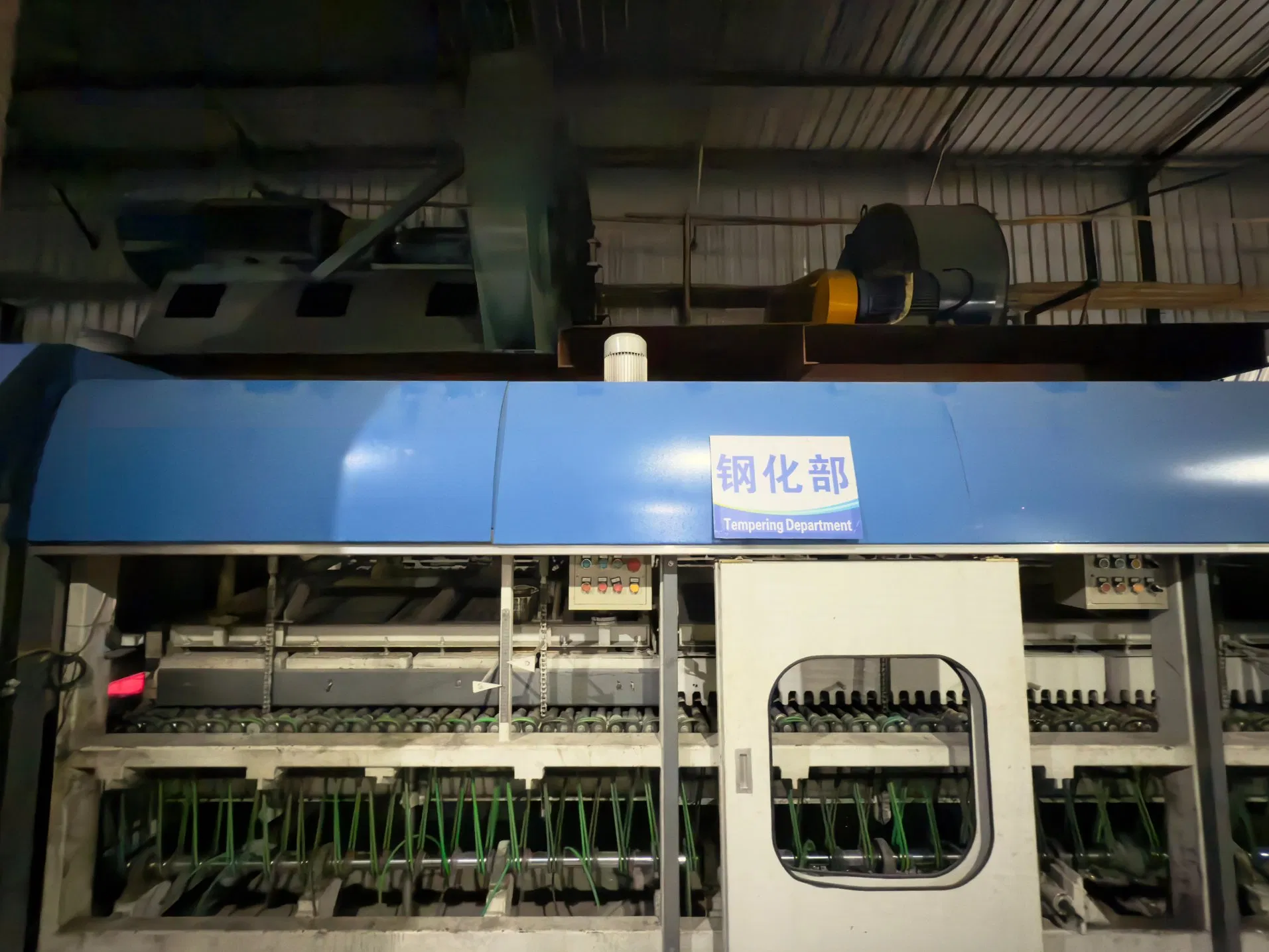

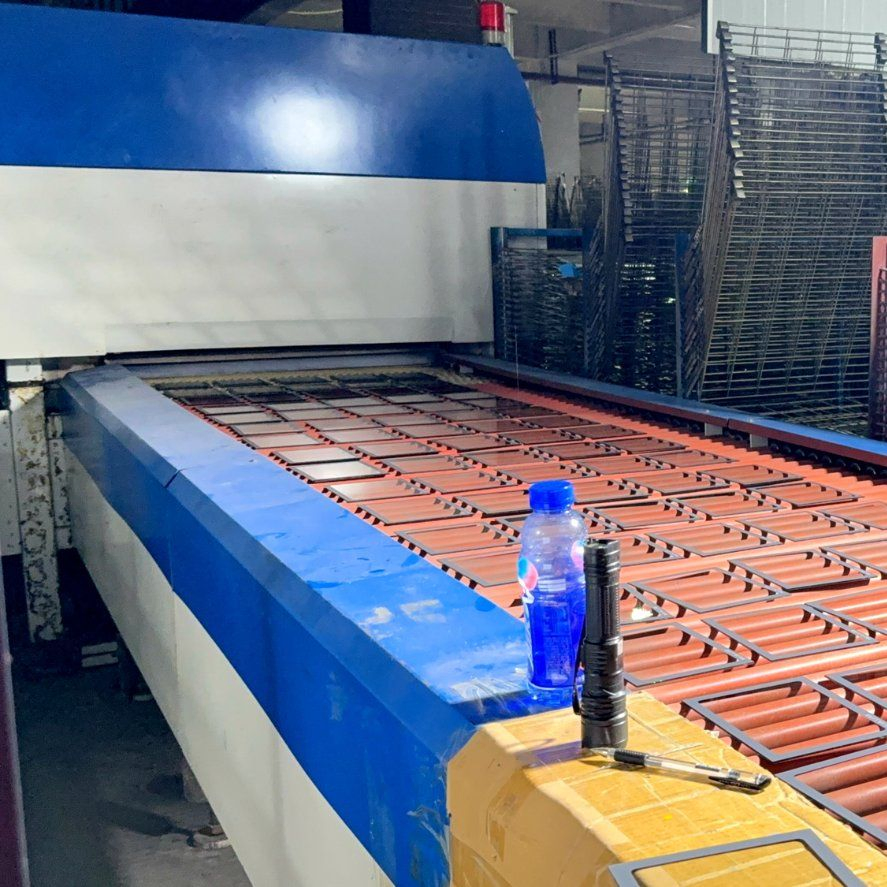

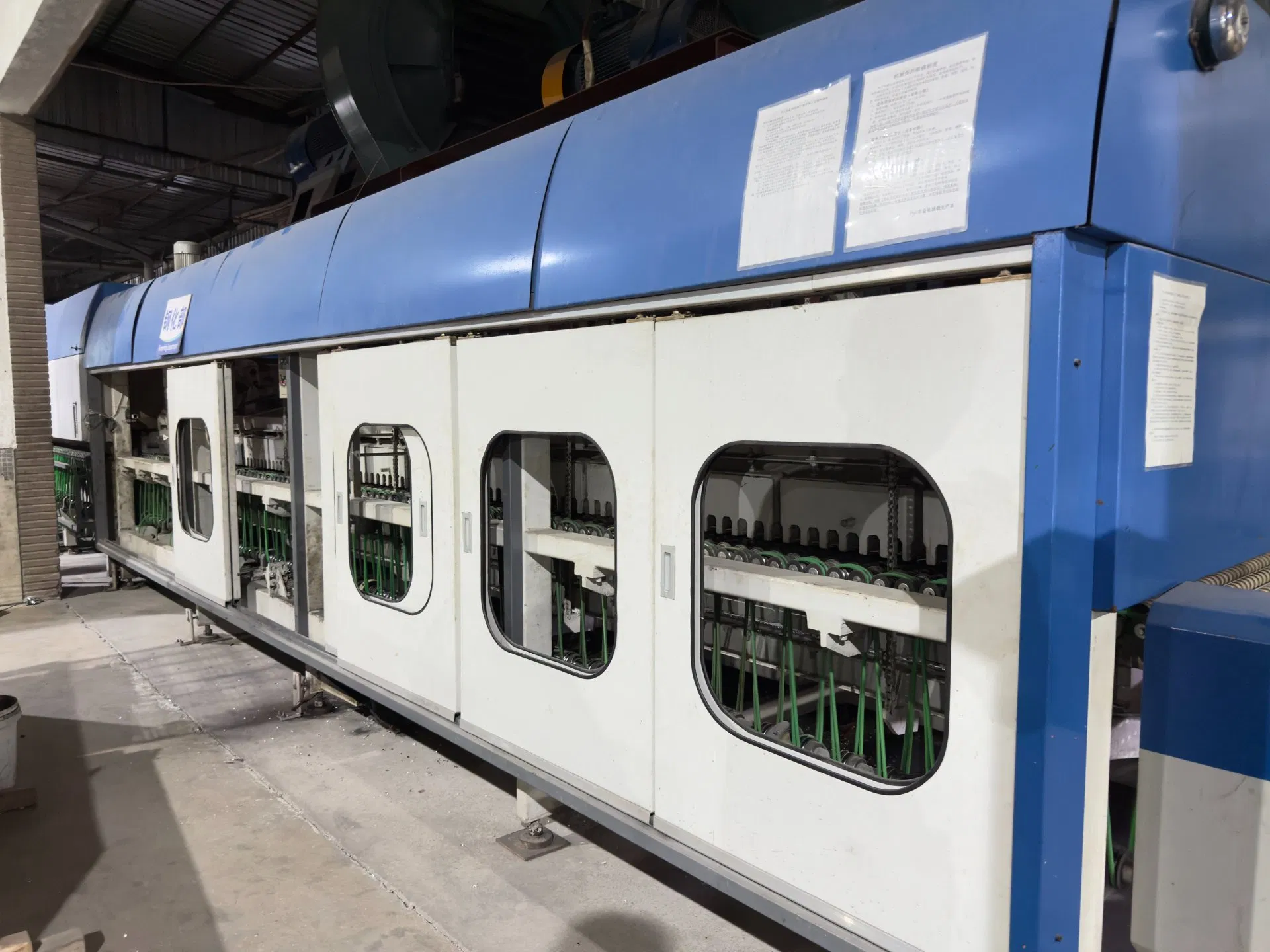

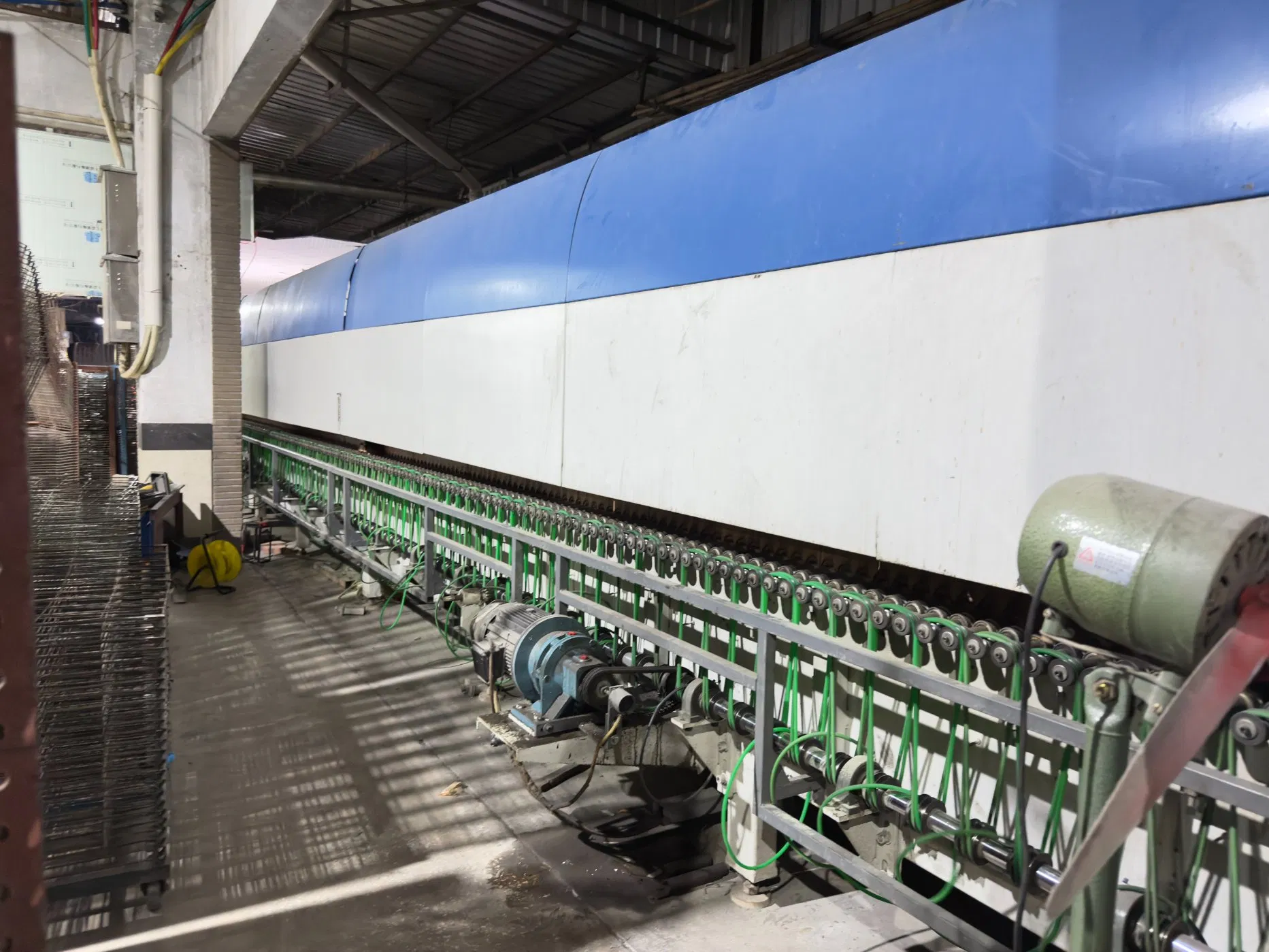

Continuous Flat Glass Tempering Furnace with Two Heating Chambers
USD 160000٫00 – 180000٫00
/ piece
السعر يتفاوت حسب الكمية والمواصفات
| الكمية الدنيا | 1 piece |
| الفئة | General |
21
سنوات
98%
نسبة الاستجابة
24h
وقت الرد
المزيد من هذا المورد
وصف المنتج
لا يوجد وصف تفصيلي. يرجى إرسال استفسار للحصول على مزيد من المعلومات.
المواصفات التقنية
| Model NO. | YD-F-1042(+42) |
| Certification | CE |
| Control System | PLC Control, Industrial Computer |
| Glass Thickness Range | 2.85~15 mm |
| Heating Method | Convection Heating, Radiant Heating |
| Maximum Glass Size | 1000*4200 mm |
| Warranty | 1 Year for Machine and Lifetime Online Support |
| Function | to Produce Tempered Flat Glass |
| Application | Home Appliances, Construction, Furniture |
| Max. Glass Layout | 1000*4200 mm |
| Glass Thickness | 2.85-15 mm |
| Min. Glass Size | 100X100mm |
| Product Yield Rate | >=97% |
| Voltage and Frequency | 220/380/480V, 50/60Hz or as Requested |
| Installed Power | 900 Kw |
| Output | 157 Sqm/H for 4mm Thickness Glass |
| Selling Point | High Efficiency, High Productivity |
| Features | 2 Heating Chambers, 2 Working Stations |
| PLC | Beckhoff |
| Colour | Blue, White or as Request |
| Blower Arrangement | 2 Blowers |
| Electricity Consumption | <=4 Kwh/M2 |
| Transport Package | Wrapped in Plastic Bubble Sheet |
| Specification | 2.5*25.8*1.8m |
| Trademark | YD |
| Origin | Guangdong |
| HS Code | 84642010 |
